Cost-Effective Small Home Elevator

Short Description:

Load(kg): 260, 320, 400
Reted speed(m/s): 0.4, 0.4, 0.4
Car size(CW×CD): 1000*800, 1100*900,1200*1000
Overhead height(mm): 2200

Send email to us

Product Detail

Product Tags

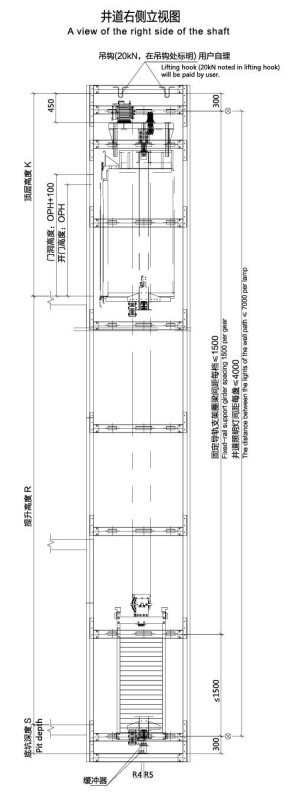

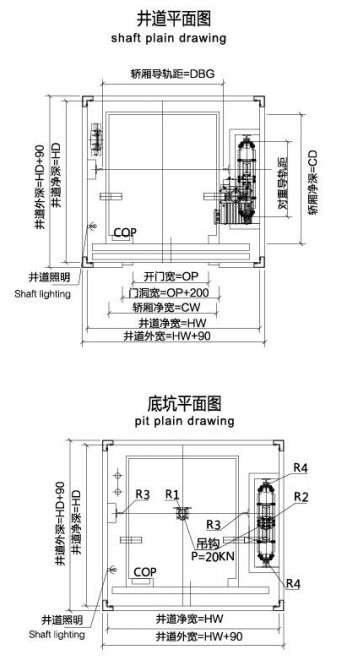

Gantry type structure home elevator product parameter diagram

Gantry type structure home elevator(Couterweight side placement)

Gantry type structure home elevator product parameters

Load(kg)	260		320		400
Reted speed(m/s)	0.4		0.4		0.4
Car size(CW×CD)	800*1000		900*1100		1000*1200
Overhead height(mm)	2200
Open the door way	Swing door	Side open	Center open	Side open	Center open	Side open
Door-opening size(mm)	800*2000	750*2000	650*2000	800*2000	700*2000	800*2000
Shaft size(mm)	1400*1100	1400*1300	1500*1350	1500*1400	1600*1450	1600*1500
Overhead depth(mm)	≥2800
Pit depth(mm)	≥500

Rucksack type home elevator product parameter diagram

Rucksack type home elevator(Couterweight postposition)

Rucksack type home elevator product parameters

Load(kg)	260		320		400
Reted speed(m/s)	0.4		0.4		0.4
Car size(CW×CD)	1000*800		1100*900		1200*1000
Overhead height(mm)	2200
Open the door way	Swing door	Side open	Swing door	Side open	Swing door	Side open
Door-opening size(mm)	800*2000	650*2000	800*2000	700*2000	800*2000	800*2000
Shaft size(mm)	1150*1300	1150*1500	1250*1400	1250*1600	1350*1500	1350*1700
Overhead depth(mm)	≥2600
Pit depth(mm)	≥300

Product Description

Tianhongyi villa elevator adopts advanced technology to ensure the stable, intelligent and efficient operation of the elevator in terms of traction system and control system, so that you can enjoy the comfort. Low noise, easy to install, let you have a beautiful home environment. Save the design and construction costs of the computer room, so that your building can be fully utilized. Small footprint, safe and reliable. Tianhongyi Villa Elevator is an ideal practical and exquisite elevator for duplex and multi-storey residences. It is also the most ideal means of transportation for the elderly, the disabled and the sick.

Classification Of Villa Elevators

1. Hydraulic drive: hydraulic home elevators belong to the traditional home elevator design. Because of factors such as oil leakage polluting the environment, too much operating noise, and wasting a lot of electricity, they are not in line with the development concept of environmental protection and energy saving of the modern elevator industry and are being phased out by people.Most of them are used for freight elevators or special elevators with large tonnage.

2. Traction drive: because of environmental protection, energy saving and building space saving, the machine room-less traction villa elevator is being widely used by people. Traction drive is divided into gantry structure, backpack structure, strong drive structure and so on. At the same time, the gantry structure of the car system integrates the elevator suspension point, the elevator center of gravity, and the guide rail center into one, and the double-layer car bottom equipped with a shock absorption system makes the elevator operation extremely comfortable. Energy saving and environmental protection make this series of elevators the mainstream product in the current villa elevator market, accounting for about two-thirds of the market share, and is the first choice for villa elevators.

3. Screw drive: The screw elevator adopts a nut and screw drive structure, which is also a machine-roomless elevator. Because the overall structure of the elevator is very compact, it has a high shaft space utilization rate and can realize a car-wallless structure. The car has no damping device, and the comfort and stability of the elevator operation is inferior to that of the traction villa elevator. At present, the market share of this series of products is relatively low, and it can be used in villas and duplexes.
